Center Rock
Drilling Support Equipment
CENTER ROCK offers a complete lineup of support equipment and drilling accessories designed to maximize performance and keep your operation running efficiently. Our offerings include Drill Support Platforms, HYDRO-JAW® 1200 and 2400 Series breakout/make-up systems, water and oil injection systems, eco-friendly rock drill oil, and custom mobile workshops.
Performance Systems
Breakout Systems
LP Breakout Stand
The Center Rock LP Breakout Stand provides a stable, secure platform for servicing LP drills and changing tooling with greater safety and efficiency. Built for durability and ease of use, it helps streamline maintenance while reducing downtime on the job site.
Ratchet Attachment
The Center Rock Ratchet Attachment provides a convenient air supply connection for LP drills when the drill rig lacks an air inlet. Designed for compatibility with a variety of Kelly Boxes, it delivers dependable performance while allowing smooth drill rotation during operation.
Equipment Attachments
Skid Steer Attachment
Individual Air & Fluid Systems
Drill Support Platform
Our Drilling Support Platform combines essential systems in one dependable solution for demanding drilling environments. An integrated air manifold, oil and water injection systems, and pressure gauges provide the control, reliability, and support needed for efficient, high-volume air drilling operations.
Water Injection Systems
Designed for effective dust suppression, our water injection systems provide dependable performance in challenging field conditions. Each unit features a 14.5 HP engine, a high-output triple piston pump, electric start, a protective guarded frame, a winterizing kit, and durable inlet and discharge connections for reliable operation year-round.
Oil Injection System
Our self-contained oil injection systems deliver precise, air-actuated positive displacement performance for reliable lubrication in demanding drilling applications. Available with either a 7-gallon or 22-gallon reservoir featuring an integrated sight glass and adjustable flow rates, each system is designed for efficiency and uses biodegradable rock drill oil that meets EPA standards.
1450/200 Air Compressor
Available for both sale and rental, our 1450/200 air compressors deliver the high-volume air needed to power multi-hammer LP drilling operations. Producing 1,450 CFM at 200 PSI, these dependable compressors are built to provide the consistent performance and reliability required for demanding drilling projects.
Air Manifold
Our heavy-duty air manifolds provide an efficient way to connect multiple compressors to a single air supply, helping maximize productivity on the jobsite. Designed for rugged field use, each manifold features multiple inlet, outlet, and auxiliary ports to deliver flexible air distribution for a variety of drilling applications.
Critical Support Equipment
Drill Support Platform
Center Rock’s Drilling Support Platform is engineered to improve safety, efficiency, and productivity on the job site. Featuring an integrated air manifold, oil injection system, water injection system, and pressure gauges, it provides the essential support needed for reliable, high-volume air drilling operations.
Hydro Jaws
Center Rock’s Hydraulic make-up and breakout machines are critical for all drill site support applications. Available for rent or sale

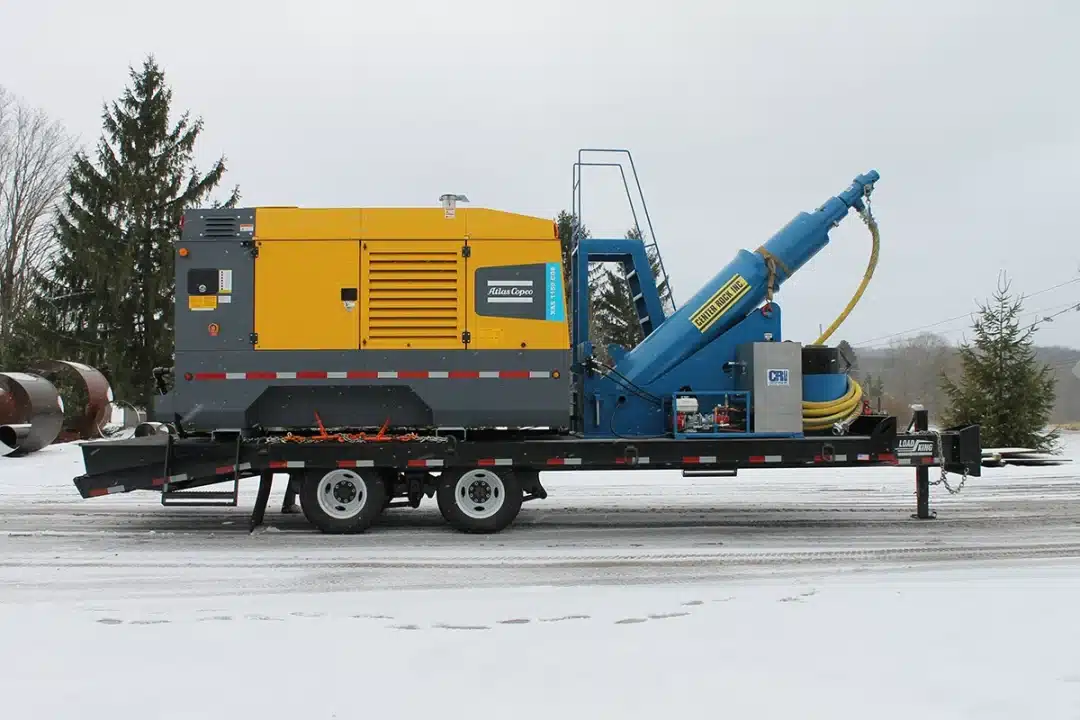

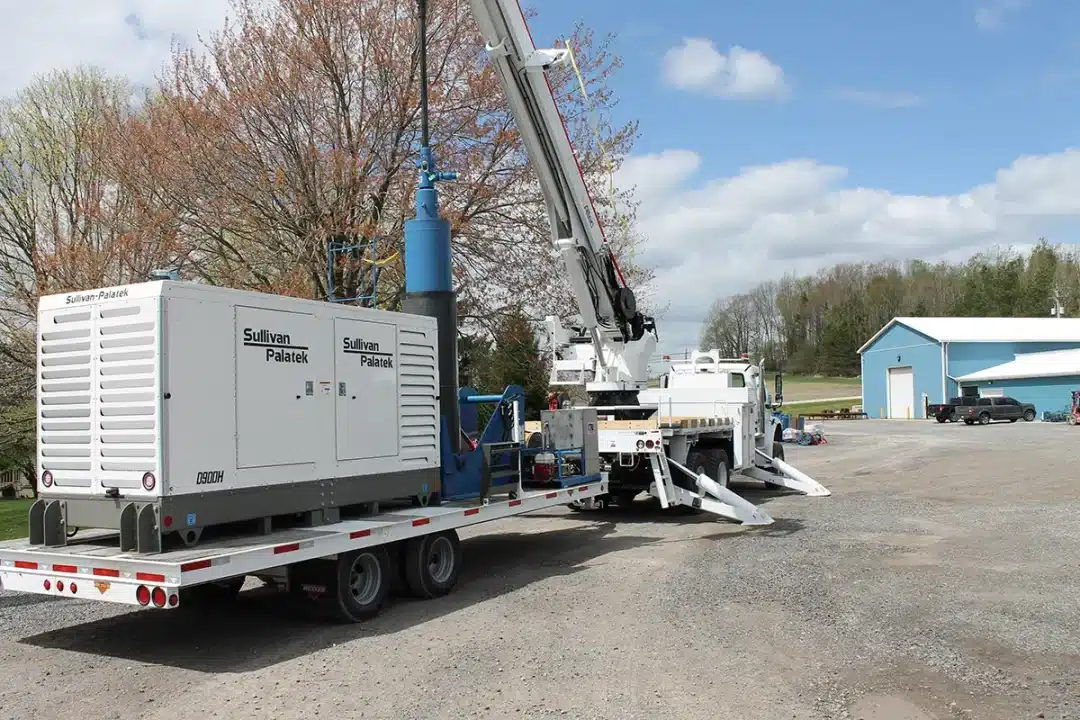

Utility Trailer Package
Standard Utility LP Trailer Package
Accommodates for 18, 20 and 22 inch Utility LP Drills / 16,735 lbs
Large Utility LP Trailer Package
Accommodates for 24 and 30 inch Utility LP Drills / 28,233 lbs.
ASSEMBLY DETAILS:
- Utility LP Drill Cradle: 6500 lbs plus Utility LP tool weight 2700 lbs+
- Hydraulicly activated tilting for 45-degree transport configuration and vertical picking positioning.
- 2” Air Hose and Reel: 800 lbs+
- Hydraulicly operated hose reel and pneumatically operated ball valve.
- Mounted water and oil injection system: 700 lbs+
- For dust suppression and air tool lubrication and bio-rock dril oil stowing.
- XAS 950 Atlas Copco Air Compressor: 7800 lbs+
- CDS T4F with CAT C7.1 six cylinder turbocharged
CENTER ROCK INC.’s® custom designs 20ʼ and 40ʼ mobile workshops as an on-site solution for servicing and maintaining your DTH hammers and bits.
The mobile workshop offers a comfortable, climate controlled environment with your safety in mind featuring an explosion proof exhaust fan, an overhead bridge crane for safe lifting, and ergonomic work stations.
Utilization of the automatic bit sharpener will ensure maximum bit life over the course of your project and effective hammer maintenance ensures peak operational performance. We also provide custom painting and labeling to match your fleet.
Give us a call today and let our design team customize a mobile workstation to fit your needs.
Available Features:
- Heat and air conditioning with protective cage
- High efficiency, explosion-proof exhaust fan Air compressor with air drops throughout workshop
- One ton overhead crane running the entire length of the workshop
- Electrical Discharge Machine (EDM) for replacing carbide inserts
- CME automatic drill bit sharpener, water cooled with in tank filtration
- 200 amp electrical service with 240 volt single phase and outlets
- Explosion proof safety lighting throughout workshop
- Security enhanced 36” man door and barred windows
- Tool box, job box, hammer racks and storage racks with doors
- Customized fold-out hammer repair bench and dedicated parts wash table
- HYDRO-JAW® and Breakout stand for tool disassembly image gallery
Custom DTH Mobile Support Workshop
