Utility DTH Tooling

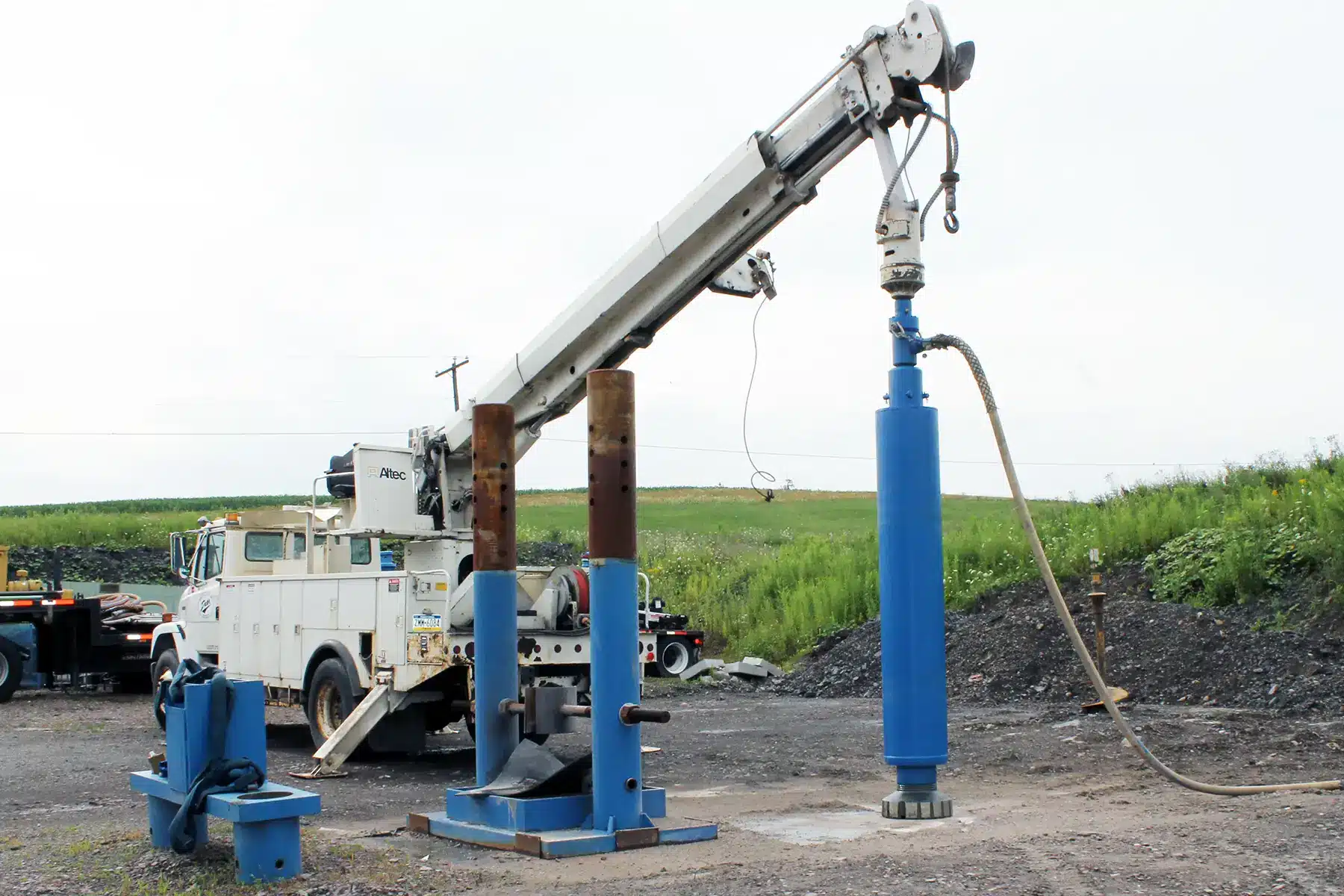

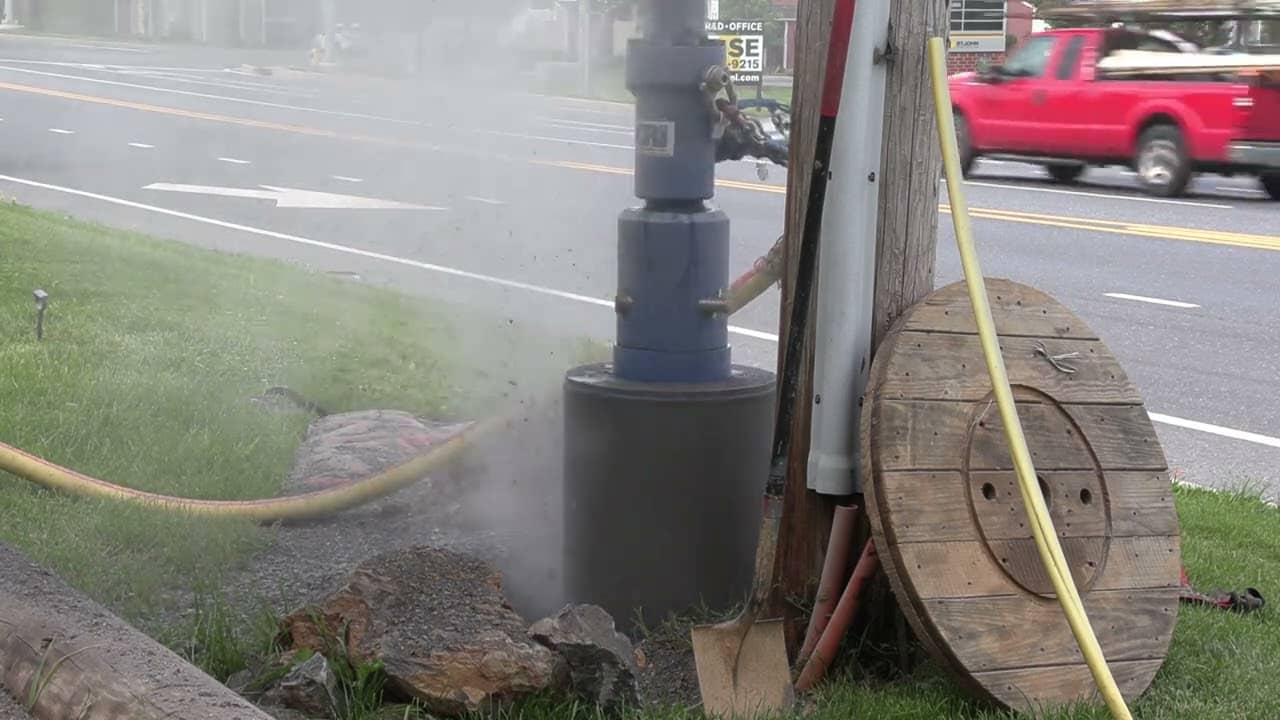

Our utility tooling drill is designed to be used on digger derrick trucks or other standard mountings for drilling utility pole holes. We designed the Utility LP DRILL with special consideration given to the weight and air consumption of an utility LP to ensure applicability to the currently available mountings.
Utility LP DRILLs Features & Benefits
Our Utility LP DRILL is significantly lighter than competitive mono-hammer pole drills, and they also consume noticeably less air, resulting in enhanced penetration rates. Also noteworthy on this utility pole drill is the use of multiple, lower-cost, smaller bits, compared to the expensive large-diameter bits used on mono-hammer pole drills. Offered with a side inlet swivel attachment and optional extension rod, the Utility LP DRILL is the perfect choice for utility pole hard rock sockets from 18″ and larger (457mm).
Size Range
18”- 36”
Hammer Count
4-5
Weight (lbs)
1611 - 4998 lbs
Pin together hex connections
Meets low headroom demands, LP measures 46″ (1168 mm) shoulder-to-shoulder
Lightweight construction for easier lifting and handling
Low vibration, no shock sub required
Low air requirements, minimum 825 CFM (23 cubic meters)
Canister is only 1″ (25 mm) under cutting diameter of bits for better stabilization and to maintain up-hole velocity
Canister extension for appropriate hole flushing at deeper depths

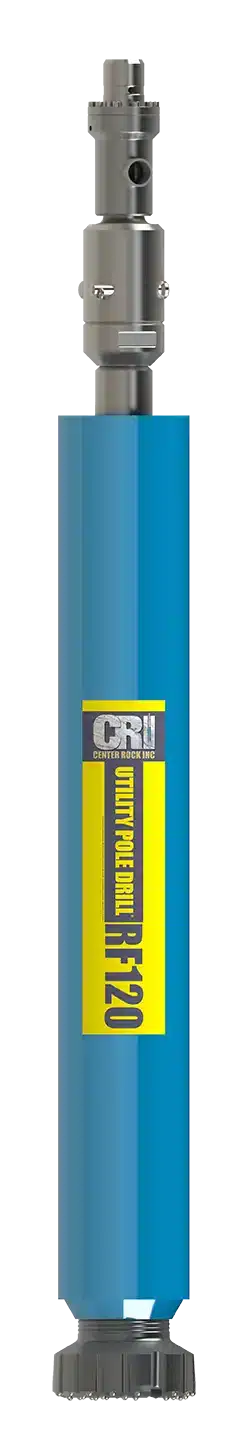

Pole Drill Mono-Hammer Features and Benefits
Utility contractors across the country rely on Center Rock’s Pole Drill for tough jobs. Built as a single, high-output DTH hammer. The Pole Drill handles utility pole rock sockets from 18″ to 24″ (89mm–610mm).
Size Range
17.5” - 24"
Hammer Count
1
Weight (lbs)
154-567 lbs (with bit)
Hex Connection with Side Inlet Swivel - Utility configuration includes hex connection, side inlet swivel, and all ancillary items for digger derrick mounting.
